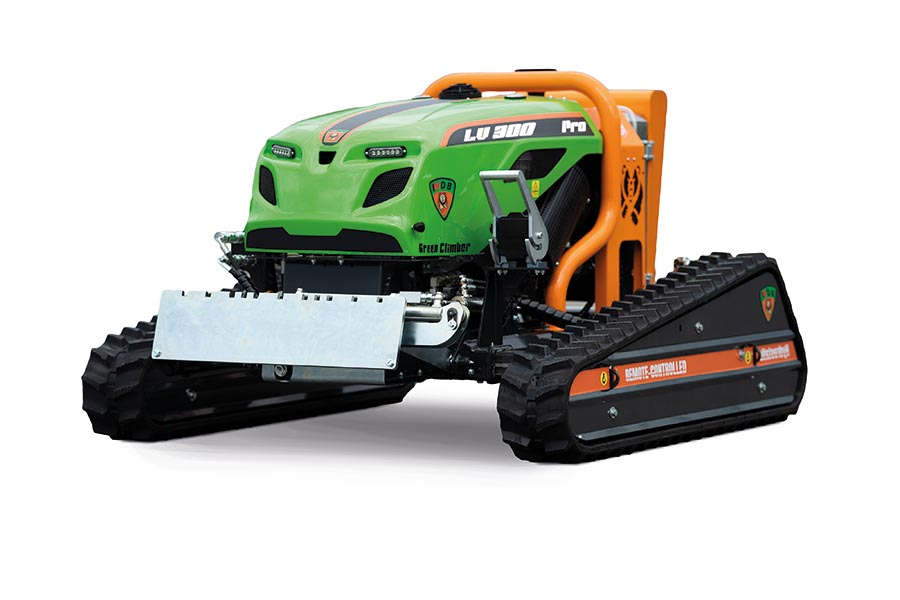

LV 300 PRO is a remote-controlled utility tractor, ideal for working in extreme conditions and on steep slopes that are hazardous for operators. Primarily used as a grass and weed mower. The quick-coupling plate can be fitted with a wide range of attachments to perform landscape maintenance and clearing road banks and motorways.
We have distributors in every corner of the earth and they will be at your disposal for any machine service. Technicians are available from the diagnostic stage, the spare parts ordering stage through to installation.
Compact dimensions and low weight allow Green Climbers to have the best power-to-weight ratio.
The low center of gravity, extendable undercarriage and high profile tracks achieve an unrivalled stability on uneven and steep terrain up to 60° grade.
The variable width undercarriage achieves an unrivalled stability on uneven and steep terrain and can be adjusted directly from the remote control.
The front plate lateral movement enables work beyond the machine's footprint of up to 800 mm.
Our undercarriage with its patented track guard system dramatically increases stability and reliability.
The LV 300 PRO has the ability to work even on muddy or loose soil.
The rapid connect/disconnect system allows for time savings for changing the attachments. A tool-less method to change attachments for the necessary job.
The easy and intuitive driving with a single joystick ensures that you always have one hand free to manage other machine movements.
The 2 additional auxiliary hydraulic lines with double-acting on/off movement ensures that even attachments with multiple functions can be controlled directly from the remote control.
The reversible fan and oversized radiator allow continous work in dusty and high temperature environments.
The Smart Battery System (SBS) is an intergrated sealed compartment that houses a battery charger for the remote control. The spare battery recharges automatically while the machine is working.
The high-strength steel frame makes our Green Climbers the lightest in its class.
Powder coating gives the bodywork protection against corrosion.
Features
| Lateral translation | 400 mm (hydraulic) + 400 mm (mechanical) |
| Undercarriage | Extendable (patented) |
| Special motor lubrication system | Yes (patented) |
| Rapid hydraulic plate attach | Yes |
| Undercarriage for elevate slopes | Yes (patented) |
| Track anti-derailment system | Yes (patented) |
| MDB prefiltered air turbine | Yes |
| Towing hitch | Yes |
| Maximum slope | 60° in all directions |
Hydraulics
| Transmission | Hydrostatic Proportional |
| Principal accessory pump | (piston closed loop) 42 L/min @210 bar |
| Service pump | 10 L/min @ 180 bar |
| Accessory Hydraulic Outputs | 2 auxiliary lines on/off |
| Hydraulic oil tank capacity | 17 L |
Dimensions
| Length | 1860 mm |
| Width | 1140 mm (Closed) 1540 mm (Opened) |
| Height | 1080 mm |
| Weight | 950 kg |
Engine
| Brand and model | YANMAR 3TNV82A / 3TNV80F |
| Fuel type | Diesel |
| Fuel tank capacity | 20 L |
| Power | 19 kW |
| Torque | 87 Nm @ 1680 rpm / 64 Nm @ 1900 rpm |
| Max speed | 9 km/h |
| Emission norms | Stage V - EPA Tier 4 Final |
| Cooling | Liquid with reversible fan and oversized radiator |
Remote control
| Scope of work | calibrated to 100 m for visibility |
| Drive with one joystick (completely proportional) | Yes |
| Battery charger compartment | onboard |
