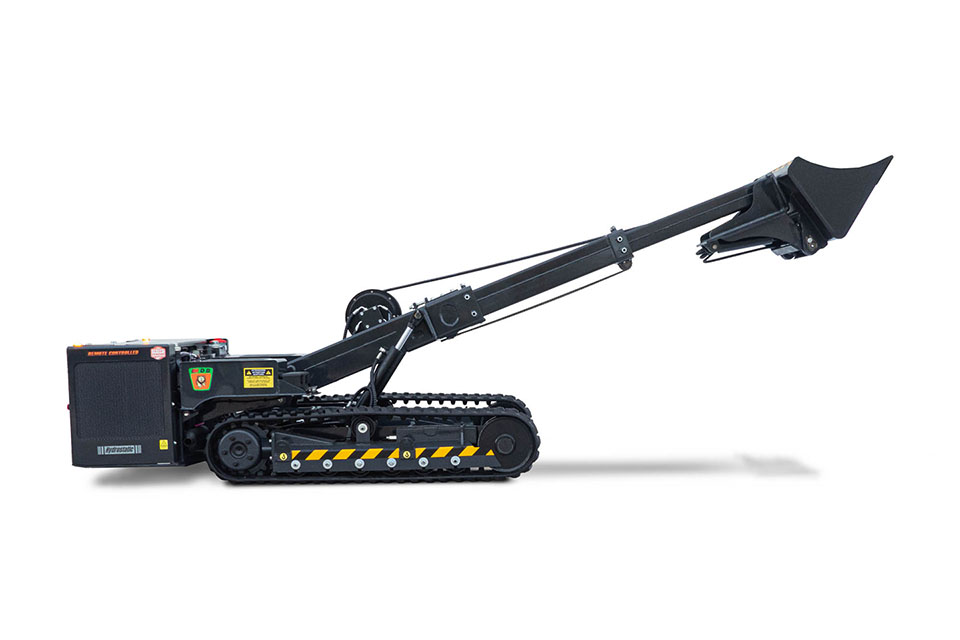

Pocketbucket is a remote-controlled tracked skid steer, equipped with a bucket for shoveling in dangerous areas, such as mining sites.
We have distributors in every corner of the earth and they will be at your disposal for any machine service. Technicians are available from the diagnostic stage, the spare parts ordering stage through to installation.
The lightweight and retractable bucket design of the Pocket Bucket allows for easy transportation in a van or on a trailer.
The Pocketbucket is a specialist machine with an undercarriage built from high strength materials with a corrosion resistant coating.
The Smart Battery System (SBS) is an integrated sealed compartment that houses a battery charger for the remote control. The spare battery recharges automatically while the machine is working.
The easy and intuitive driving with a single joystick ensures that you always have one hand free to manage other machine movements.
The additional auxiliary hydraulic line with proportional movement ensures that even attachments with multiple functions can be controlled directly from the remote control.
The remote control integrates all movements through dual joystick. Driving and steering the tracks is extremely easy and precise with a single joystick. Precision movement and tilting of the mast is easy with the second joystick.
Features
Undercarriage | Fixed |
Maximum slope | Not Applicable |
Hydraulics
Transmission | Hydrostatic Proportional |
Service pump | 28 L/min @ 180 bar |
Accessory Hydraulic Outputs | 1 proportional auxiliary line |
Hydraulic oil tank capacity | 34 L |
Dimensions
Length | 3000 mm folded / 4600 mm extended |
Width | 1420 mm |
Height | 760 mm folded / 2840 mm max |
Weight | 1730 kg |
Lifting capacity | 800 kg retracted / 500 kg extended |
Engine
Brand and model | KUBOTA V1505T |
Fuel type | Diesel |
Fuel tank capacity | 27 L |
Power | 33 kW |
Torque | 118 Nm @ 2000 rpm |
Max speed | 8 km/h |
Emission norms | Stage IIIB - EPA Tier4 Final (Stage V optional) |
Cooling | Liquid with fan |
Remote control
Scope of work | calibrated to 100 m for visibility |
Drive with one joystick (completely proportional) | Yes |
Battery charger compartment | onboard |
